Owing to glass woo' good performances,e.g., thin and long inner fiber, low thermal conductivity, it can stop air flowing and heat transforming, Meanwhile, it can quickly reduce the transportation of sound to make effects of insulation and sound-absorption.
Centrifugal glass wool is divided into glass wool boards and blanket. It was the best material used for the insulation and sound absorption of steel structures. It mainly includes bare blanket and blanket with foil-clad covered. They are widely used in industrial plants, warehouses, public facilities, exhibition centers, shopping centers, cold stores and a variety of indoor playgrounds, sports grounds and other buildings.
Product Description
glass wool blanket Introduction
glass wool blanket Technical Data

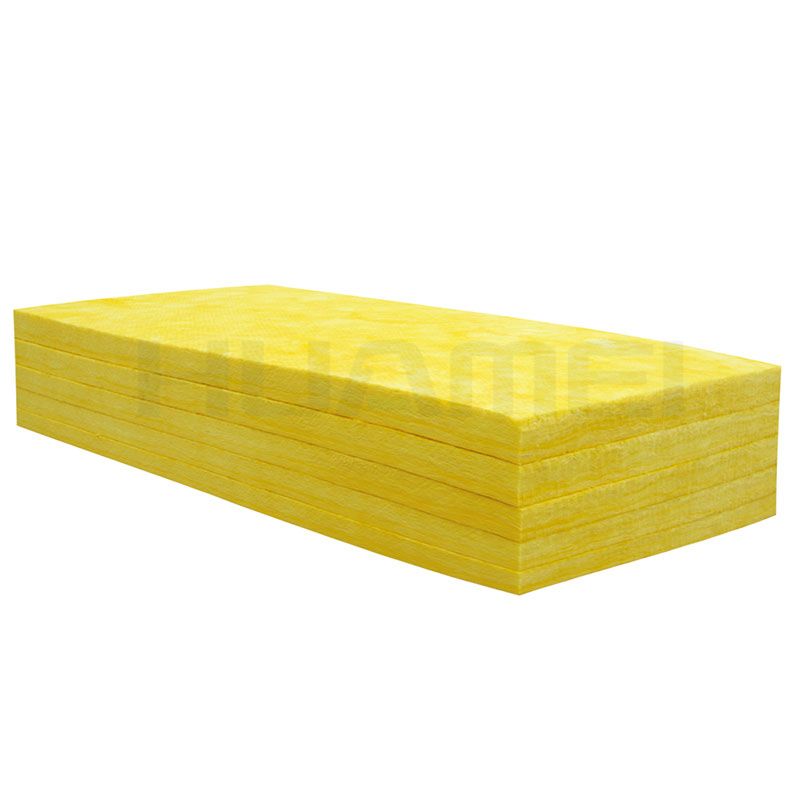

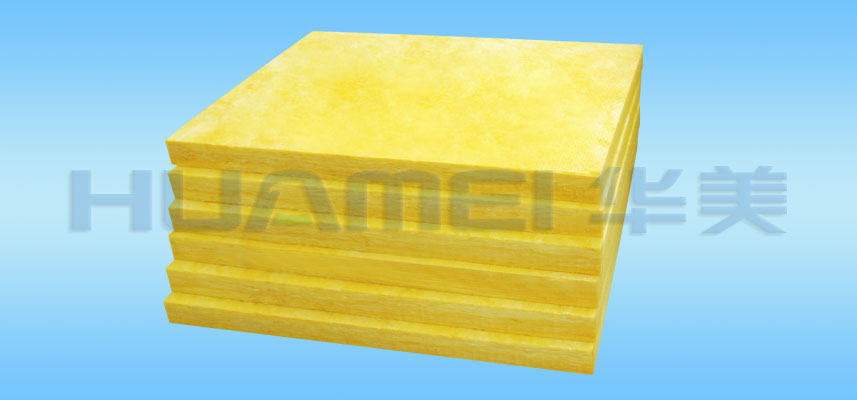

Glass wool board/glass wool blanket is processed by putting the thermosetting binder into the glass wool, by pressing and heating, and then, by curing.
They are widely used for insulation, ventilation and the adjustment of air-conditioner in commercial industry and residential constructions.
Meanwhile, they have the effect of energy-saving insulating, sound-controlling and improving the indoor air quality.

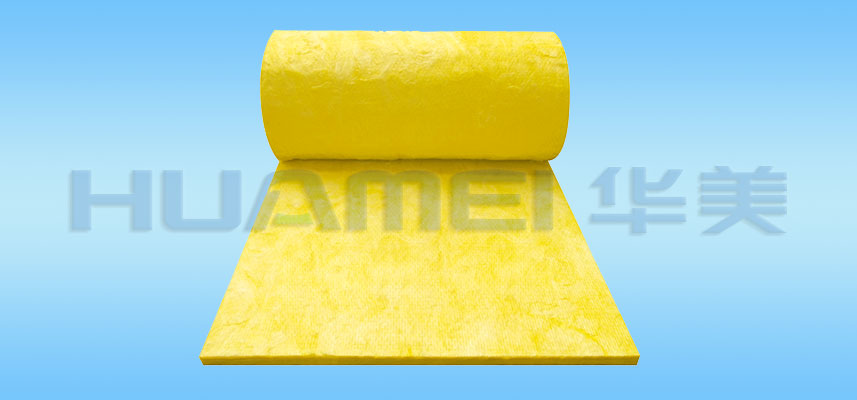

Glass wool building blanket is manufactured in custom sizes. It is used on the slabs of non utilized attics, betweenthe rafters of utilized attics, for horizontal applications where no load isapplied, for metal and sandwich roofs.
Building blankets are rolled out on the slab when they are used for the insulation of non utilized attics. Since glass wool building blanket is lightweight, it is easy to take it up to the roof and to cut to be applied. Owing to the characteristics of glass wool, it doesn’t get ripped during application. If can be applied easily with no waste pieces and each piece can be utilized. It can be adjusted to any type of roof. In order to reduce the condensation risk in winter and to discharge the overheated air in the attic, upper part of the insulation should be kept ventilated. The rolls should not be covered over by
nylon or similar type of covers. Aluminium foil faced building blankets should be rolled on in the manner that the foiled face will be on the heated side.
Enclosures and partitions; facing and external walls; suspended ceilings; steel structures; prefabricated houses; HVAC duct work. High temperature workshops, control rooms, plant room walls, carriages and flat roof lining materials.
Feature
• Thermal insulation
• Fire safety
• Sound insulation
• Easy to install
• Available in different sizes
• Lightweight
Item | Unit | Index | Standard |
Density | Kg/m3 | 10-100 | GB/T 5480.3-1985 |
Average fiber dia. | μ m | 5.5 | GB/T 5480.4-1985 |
Water content | % | ≤1 | GB/T 3007-1982 |
Grade of combustibility | Non-combustible Grade A1 | GB 8624-1997 | |
Reshrinking temp. | ℃ | ≥250 | GB/T 11835-1988 |
Thermal conductibility | w/m·k | 0.038-0.06 | GB/T 10294-1988 |
Hydrophobicity | % | ≥98.2 | GB/T 10299-1988 |
Moisture rate | % | ≤5 | GB/T 16401-1986 |
Sound absorption coefficient | 1.03 product reverberation method 24kg/m3 2000HZ | GBJ47-83 | |
Slag inclusion content | % | ≤0.3 | GB/T 5480.5 |
